Quick Summary
Effective automatic gate troubleshooting helps property owners systematically identify whether gate failures stem from simple power interruptions, dirty safety sensors, or hazardous mechanical binding. While basic visual checks and clearing photo-eye obstructions can be done safely at home, complex structural shifts and internal operator faults require master diagnosticians like Ironworks Gate Co. for safe, same-day repair. Readers will understand key UL 325 entrapment-protection standards and know when to schedule a professional on-site assessment to restore access quickly and safely.
Automatic Gate Troubleshooting: Safe Checks and When to Call a Professional
When performing automatic gate troubleshooting after a driveway gate stops working, finding whether the issue is electrical, mechanical, or structural helps determine the next safe step. Before attempting repairs or forcing an operator, a systematic automatic gate troubleshooting process helps identify common issues and avoid unnecessary hazards.
Mechanical binding or structural problems such as shifting posts and misaligned frames can prevent smooth gate operation and may require professional inspection from specialists like Ironworks Gate Co. to diagnose and resolve safely.
Automatic Gate Safety and Entrapment Standards
Modern driveway gates operate under significant mechanical force. According to the U.S. Consumer Product Safety Commission (CPSC), people may become entrapped during automatic opening or closing cycles and may suffer cuts, broken bones, hematomas, or amputations (CPSC Safety Alert).[1]
To reduce these risks, the UL 325 standard requires vehicular gate operators to have at least one independent primary and one independent secondary entrapment-protection method (UL 325 Standard for Door, Drapery, Gate, Louver, and Window Operators and Systems). Examples include:[5]
- Photoelectric sensors that detect obstructions across the gate path.
- Contact sensors, such as reversing edges.
- Inherent detection systems built into the operator that sense resistance, stopping and reversing the gate within two seconds.
Never bypass, jump, or disable entrapment-protection devices. If safety devices fail or the gate cycles unexpectedly, stop using the gate immediately and seek a qualified professional inspection.
Why Is Your Automatic Gate Not Working? Diagnostic Overview
Need automatic gate troubleshooting?
We’re available now - call for a fast, free estimate.
Diagnostic Overview: An automatic gate generally stops opening or closing due to power loss, physical obstructions, blocked or misaligned photo eyes, failed safety devices, unintended control signals, faulty access-control inputs, electrical interference, or mechanical resistance (UL 325 / CPSC Safety Guidelines).[2]
Safe Initial Checks
- Keep the travel zone clear: Ensure all people, children, and pets remain well clear of the gate’s operating path.
- Check for external obstructions: Safely inspect the path, track, and hinges for physical debris or interference without forcing moving parts.
- Maintain a clear line of sight: Ensure any reset control is operated from a location with a clear view of the gate.
Diagnosing Electrical, Mechanical, and Safety Faults
Power Loss and Electrical Supply
If the gate operator shows no signs of life, check the main breaker and external power disconnects. Suspected wiring damage or high-voltage electrical faults require diagnosis by a qualified technician.
Photo-Eye and Safety Sensor Troubleshooting

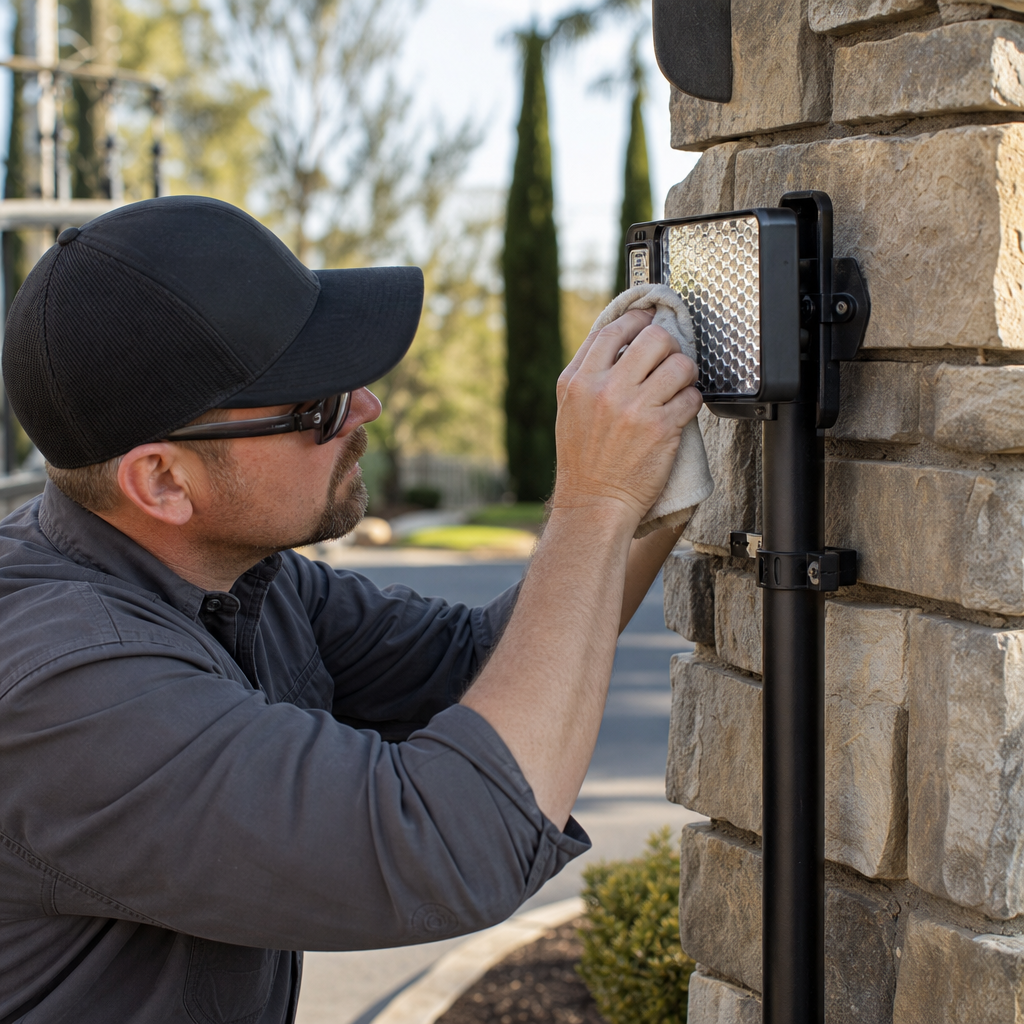

As part of comprehensive automatic gate troubleshooting, photo-eye inspection includes checking that optical lenses are clean, the units are properly aligned, the beam path is unobstructed, and the power indicators show the sensors are energized. Consult the manufacturer manual for specific diagnostic indicator meanings on your model.[3]
Control Signals and Access Inputs
Unintended gate movements or failure to respond can stem from faulty access-control inputs, stuck push-button or keypad circuits, or external electrical interference. Disconnecting external inputs according to manufacturer procedures can help identify the source of unwanted signals.
Mechanical Resistance and Structural Issues
Gates that stall, bind, or reverse mid-travel may be reacting to mechanical resistance or safety device activations. As noted by Ironworks Gate Co., worn hinges, track obstructions, misaligned tracks, or structural settling can cause binding that triggers inherent entrapment protection.
Frequently Asked Questions About Automatic Gate Troubleshooting
Why is my automatic gate not opening or closing?
Common causes include power loss, an active obstruction, misaligned or dirty photo eyes, failed safety devices, access-control input faults, or mechanical resistance (UL 325 / CPSC Safety Guidelines).
How do I reset an electric gate opener motor?
Always follow the manufacturer-specific reset procedure. Keep all people and vehicles clear of the gate path, and only operate reset controls located within a clear line of sight of the gate.
Why does my automatic driveway gate open by itself?
Unintended gate openings may result from unintended control signals, shorted or faulty access-control inputs, or electrical interference.
How do I know if my gate photo eyes are working?
Check for clean lenses, proper alignment, unobstructed beam paths, and active power indicators. Refer to the specific manufacturer manual for model-specific indicator light meanings.
What causes an automatic gate to stop halfway?
A gate stopping mid-travel is typically caused by an obstruction, a triggered entrapment-protection sensor (such as a blocked photo eye), or mechanical resistance that activates the operator’s inherent reverse mechanism.[4]
When should I call a professional gate repair technician?
Homeowners can perform basic visual checks, clear surface debris, and clean optical lenses. Qualified professional technicians, such as the team at Ironworks Gate Co., should handle high-voltage electrical diagnosis, structural realignment, internal drive repairs, and any recurring entrapment safety failures.
Need automatic gate troubleshooting?
We’re available now - call for a fast, free estimate.
Sources
- [PDF] 2024-11-20-COPF-CODD-Hummingbird-Alliance-Meeting-Log.pdf – cpsc.gov (2024)
- [PDF] Petition File No. 605 Cal/OSHA Evaluation – dir.ca.gov (2024)
- New Safety Standard for Automatic Security Gates Helps Prevent … – cpsc.gov (2000)
- [PDF] Investigation Guideline Product: Automatic Gate Operators Appendix – reginfo.gov
- [PDF] Gate Operators – The Code Authority – code-authorities.ul.com (2000)
Related reading: Electric Gate Troubleshooting | Call Now-10% Off | Same-Day Service | Free Estimate
Related reading: Open Electric Gate Manually – 10% Off & Free Estimate – Same-Day Service
Related reading: Electric Gate Problems – Call Now-10% Off – Same-Day Service – Free Estimate
Frequently Asked Questions
Why does my automatic gate keep reversing even if the driveway track is clear?
Unintended reversals often occur when the operator's built-in entrapment sensor detects mechanical drag caused by warped hardware, stiff hinges, or subtle post movement. When basic sensor cleaning does not resolve the issue, professional diagnosticians like Ironworks Gate Co. can measure motor resistance and test safety edge circuits to locate the exact fault.
How does shifting soil cause gate mechanical binding and operator failure?
Expansive clay soil frequently shifts gate support posts out of plumb, causing heavy frames to sag and bind against tracks or latches. This structural friction overloads the electric operator and triggers safety shutoffs, which requires structural realignment and hardware adjustments rather than a simple electrical reset.
Is it safe to force an automatic gate open if basic troubleshooting does not work?
Never force a gate open while the drive arm or chain is actively engaged, as this can strip internal motor gears and crack mounting brackets. Instead, use the manufacturer-approved manual release key to disconnect the drive, then schedule a professional same-day diagnostic repair to restore automatic operation safely.
